浏览产品规格书请划到右侧→
|
额定功率 |
衰减值 |
频率 |
最大驻波 |
尺寸(mm) |

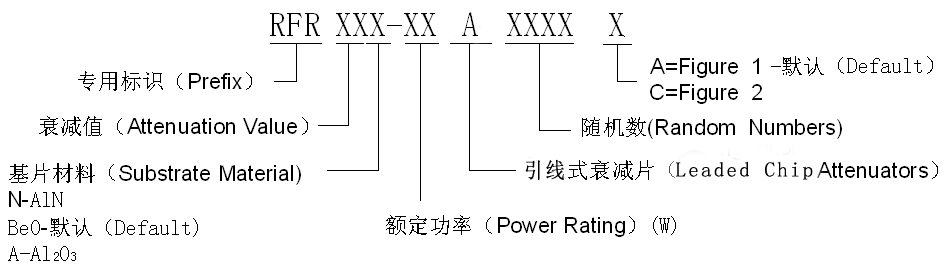

产品型号 |
|||||
|
Power Rating |
Attenuation |
Frequency |
（Max) |
Dimensions |
Model |
|||||
|
（W） |
Value(dB) |
(GHz) |
VSWR |
W |
L |
T |
H |
I |
Tw |
点击下方查看规格书
|
|
10
|
20 |
6 |
1.25 |
4 |
4 |
1 |
N/A |
N/A |
N/A |
|
|
60
|
30 | 2.5 | 1.15 | 6 | 5 | 1 |
N/A |
N/A |
N/A |
|
|
50
|
6 |
3 | 1.2 | 6 | 6 | 1 | 1.9 | 6 | 1 |
RFR6-50A1101A |
|
100
|
30 | 2.7 | 1.15 | 8.9 | 5 | 1 |
N/A |
N/A |
N/A |
RFR30N-100A46301B |
|
100
|
20 | 3 |
1.2 |
8.9 |
5.7 |
1 |
N/A |
6 | 1 | RFR20N-100A4502C |
|
150
|
30 | 2.5 |
输入端≤1.2:1 输出端≤1.25:1 |
9.5 | 6.35 | 1 |
N/A |
N/A |
N/A |
RFR30N-150A2356C |
|
250
|
30 | 2.2 | 1.2 | 12.7 | 12.7 | 1.4 |
N/A |
8 | 0.8 |
RFR30N-250A2402C |
建议安装方法：
1、在焊接器件或引线时，最好用控温烙铁，温度保持在260℃。
2、引线处最好做一个拱桥形，这可以释放热变形产生的应力，从而保证引线处接触良好。安装时，引线尽量少折，以防引线折断。
Suggested mounting procedures:
1. Solder part or tabs in place with controlled temperature iron (260℃).
2.Forming a small loop in the tab will act as a strain relief as the heat is dissipated.
